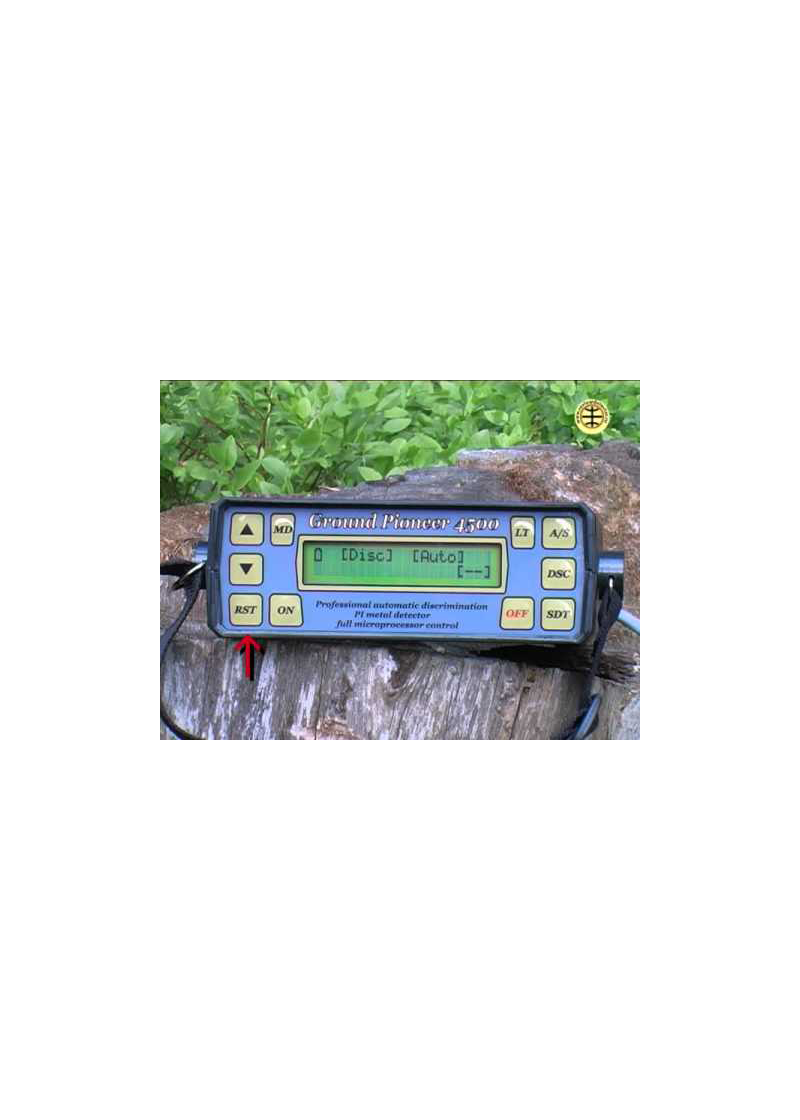

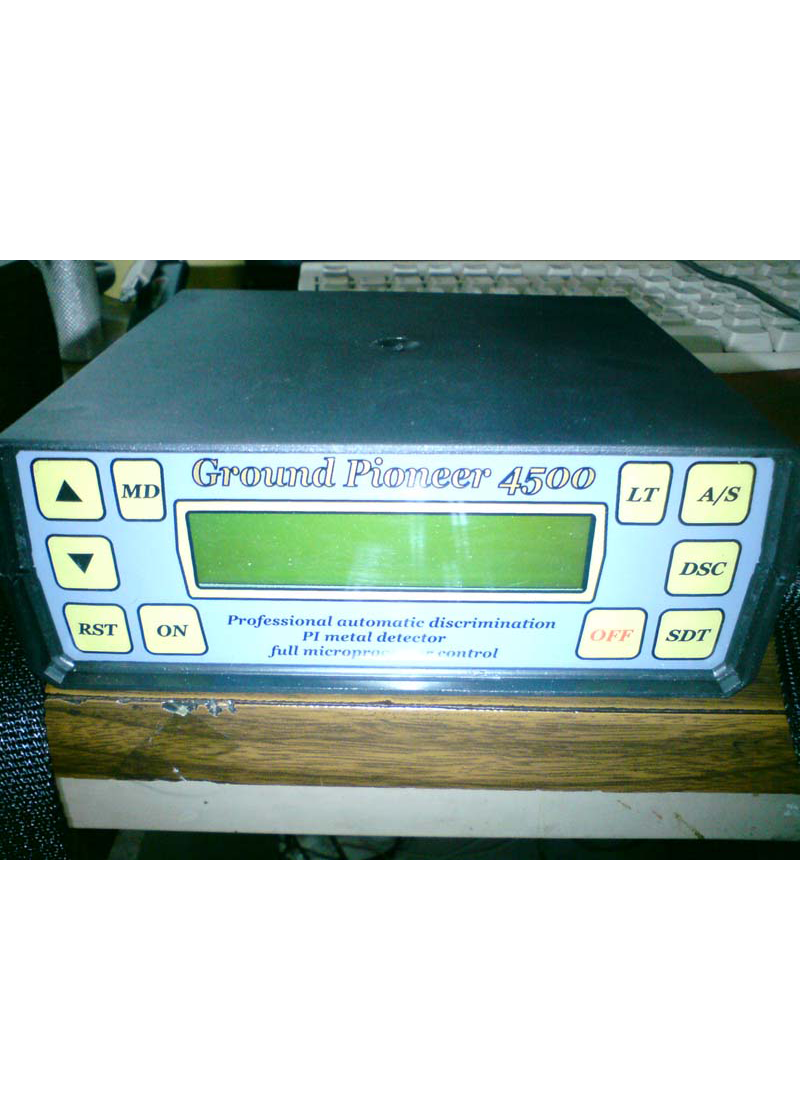

The DEEPTECH Ground Pioneer 4500 with the 50×50 cm square coil is a highly advanced pulse metal detector that combines exceptional power with the key advantages of discriminating PI (Pulse Induction) metal detectors from DEEPTECH.
One of the standout features of the Ground Pioneer 4500 is the incorporation of a built-in MAGNETOMETER SENSOR SYSTEM, making it a composite detector. This system enhances the detector’s capabilities by providing additional information about the magnetic properties of the targets.
The metal detector is equipped with built-in data ports that allow for convenient data logging. Additionally, it supports optional 3D Imaging and GPS software, enabling users to visualize the shape and size of detected targets and accurately map their locations for further analysis.
The Ground Pioneer 4500 excels in discriminating and detecting smaller, deeper gold targets, treasures, and veins. It offers outstanding sensitivity and impressive depth capabilities, coupled with 3D capability for precise pinpointing and detection.
By incorporating pulse induction imaging technology and utilizing compatible coils, the Ground Pioneer 4500 extends its detection and discrimination capabilities even further. It enables the user to detect and discriminate deeper and smaller targets compared to standard VLF (Very Low Frequency) or Pulse Induction detectors.
Ground Pioneer 4500 Technical Specifications :
- Working voltage:12V.
- Baudrate: 19200
- Databits: 8
- Stop bits: 1
- Com port setup: 19200 8n1
- Raw data format direct from ADC
- Continuous power consumption:min 240mA (with no sound and light ).
- Pick power:>250 W.
- Maximum power consuption:280 mA.
- Working Frequency:100 Hz.
- Sound Range:0,1Hz-6,5kHz.
- Battery:Rechargeable 1,3(2,3-optional)Ah,hermetic,acid Battery.
- Charger input (adapter):100/240V 50/60 Hz/AC
- Charger output:14.6 VDC 500mA .
- Battery Charging Time(empty):Max.10 hours.
- Full Microprocessor Control.
- Automatic Ground Balance.
- Auto Tracking.
- Manual Tuning.
- Delay control.
- Graphic Mode Analyzing Target.
- Display:20/2 LCD module with back light with three mode.
- All metal/No-Motion mode.
- Audio and Visual Discrimination Mode(by built-in Magnetometer-Sensor System).
- Depth Control for Maximized Detection Depth.
- Reset controls for easy operation.
- Headphone input:1/4” Mono Jack.
- External Power Supply.
- Protection against reverse polarity.
- Optimal Temperature Range:-10 to 50 Degrees C.

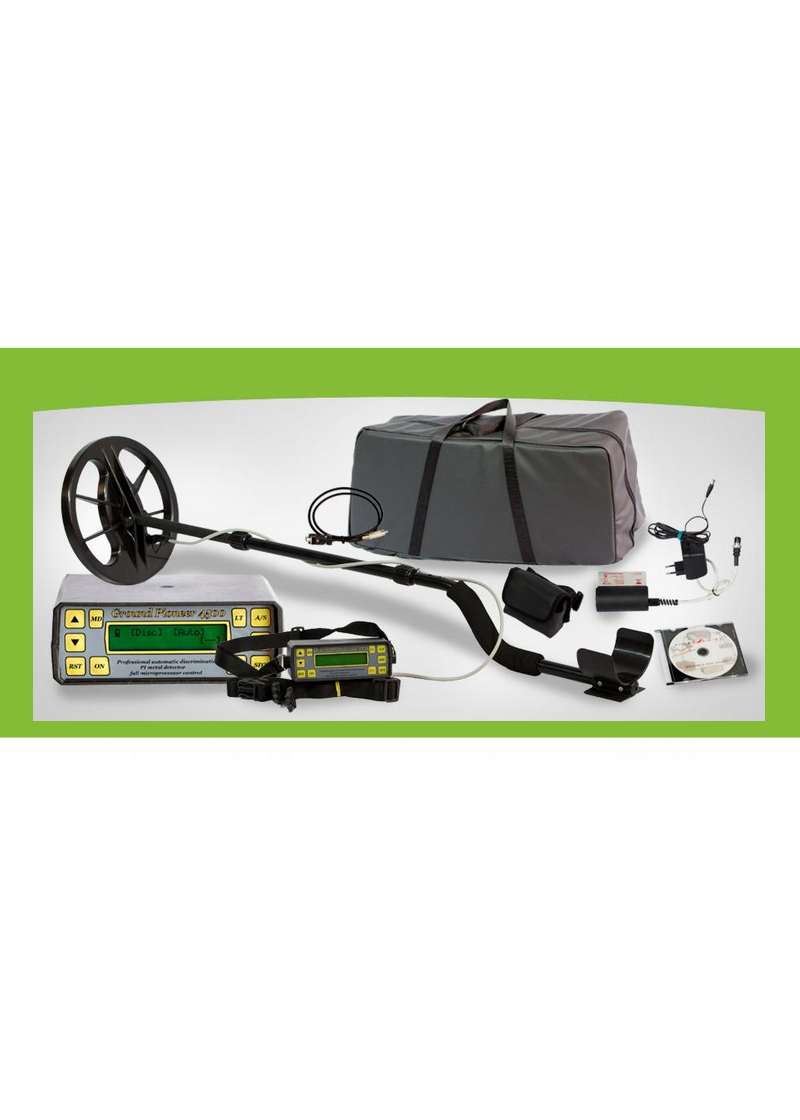

The package of Ground Pioneer 4500 comes with a number of useful accessories that are designed to enhance the user’s metal detecting experience.
- Control Unit
- Leather Carry Case with Strap
- Charge system
- 11” Round Coil

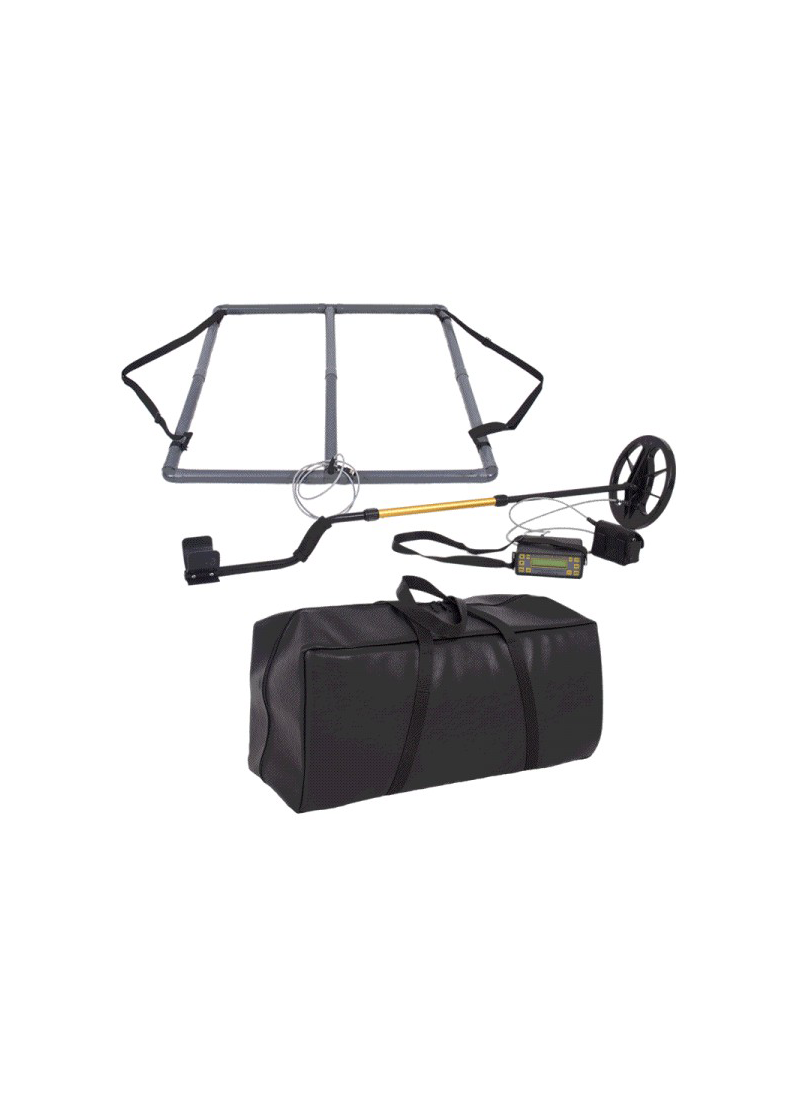

- 1m/1m Square Coil – With Magnetometer with Carry Strap
- 3-PC Handle for the round coil
- 2 Sets screw and washers, 2 zip ties
- DVD with User Manual
