The Fisher TW-82 Digital Line Tracer with Passive Power is a high-performance tool designed to set a new standard in line tracing, particularly for high-frequency applications. Tracing lines can be a complex task, and the TW-82P is equipped with the necessary features to make the process easier and more efficient.
The TW-82P is built with rugged and impact-resistant construction, ensuring durability and longevity even in challenging field conditions. It is designed to withstand the demands of industrial environments and provide reliable performance over time.
With continuous readouts and two-button receiver operation, the TW-82P offers intuitive and user-friendly functionality. The continuous readouts provide real-time information, allowing for quick and accurate line tracing. The two-button receiver operation simplifies the control and enhances the user experience.
One of the standout features of the TW-82P is its ultra-fast response. This allows for rapid detection and tracing of conductive lines, including pipes, cables, and electrical lines. The high-frequency capabilities of the TW-82P make it suitable for demanding applications where precision and efficiency are essential.
The TW-82P also includes passive power tracing functionality. This feature enables the device to trace conductive lines without the need for an active transmitter, making it a versatile tool for a variety of tracing scenarios.
TW-82 Technical Specifications :

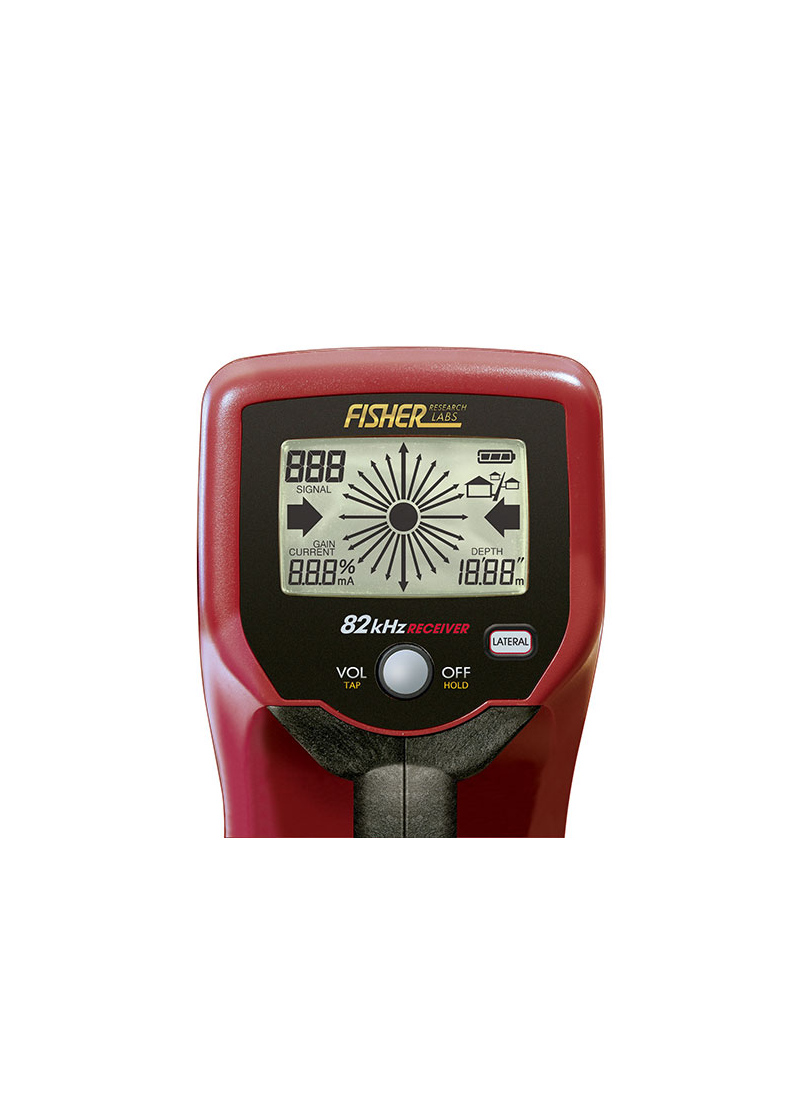

RECEIVER:
- Frequency: 82.175 kHz
- Standard Mode: Automatic response
- Lateral Mode .: Programmable
- Left/Right Guidance: Audible and visual
- Azimuth Indicator: Visual
- Over-Target Indicator: Visual and audible
- Battery Status: Visual
- Signal Strength Indicator: Numeric display & audible
- Signal Current Measurement: Numeric display & audible
- Depth Measurement: Numeric display & audible
- Battery Type: Two D-cell batteries (included)
- Battery Life: From 80 to 130 hours, depending on the volume setting
- Weight, with batteries: 3.60 lbs
- Passive Power: 50Hz and 60Hz detection.

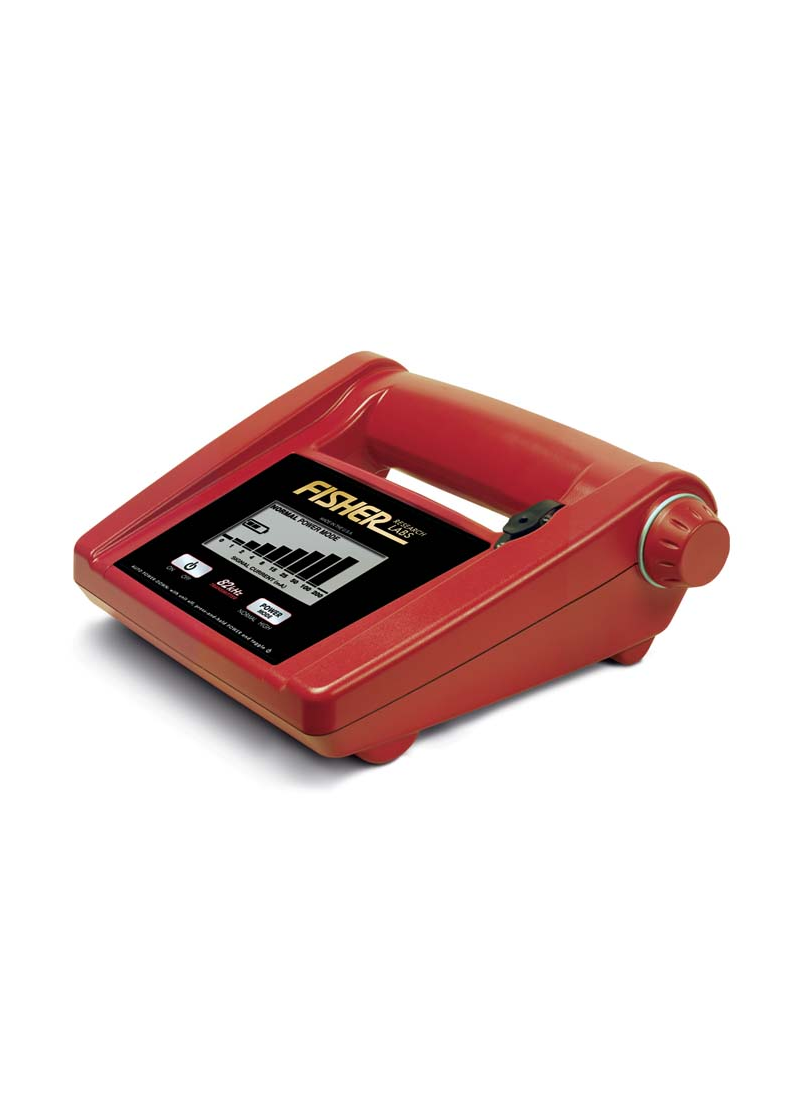

TRANSMITTER
- Output Frequency: 82.175 kHz
- Output Power (nominal): Normal Setting = 0.25 watt / High Setting = 1.0 watt
- Conductive Tracing: Normal Power: 2 to 8,000 ohms -6dB / High Power: 2 to 3,000 ohms -6dB
- Inductive Tracing: Normal Power: 15 Vm2 / High Power: 25 Vm2
- Battery Type: Four D-cell batteries (included)
- Battery Life: 130 hours
- Total Weight with batteries: 4 lbs
